-:MS/GI I-Beam:-

We are successfully engaged in the production of high end steel I-Beam available in the market. Our Structural I-Beam is widely recommended for their wide usage in various industries and for a wide number of purposes. They are available with an assurance of high level of quality and performance. We also supply our I-Beam at the most affordable prices. Apart from that, we are one of the most trustworthy I-Beam manufacturers as well as one the leading exporters from India.

MS I-Beam

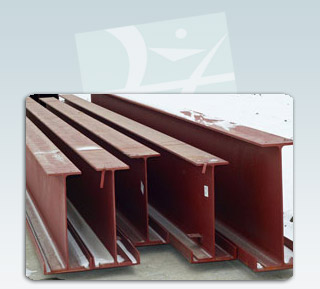

MS I- Beam 01

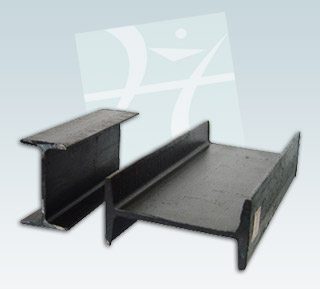

MS I Beam 02

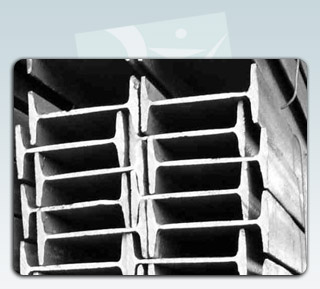

MS I Beam 03

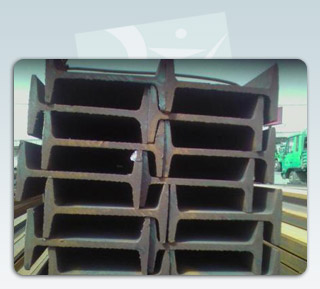

MS I Beam 04

A beam is a line structural that carries load primarily in bending. Beams are characterized by their profile (the shape of their cross-section), their length, and their material. One of the most common types of steel beam is the I-beam or wide-flange beam. A visibly sagging beam, though structurally safe, is unsightly and to be avoided. A stiffer beam produces less deflection (degree to which structural element is displaced under a load).

Beam provide economical floor and roof systems in applications requiring long clear spans and lighter weight systems. The major applications are Bridges, Flyovers, Pedestrians Walk Overs and Buildings.

TECHNICAL SPECIFICATIONS
ROLLED STEEL BEAMS
DIMENSION AND PROPERTIES AS PER ISI SPECIFICATION IS: 2062-1999
Designation	Depth of Section	Width of Flange	Thickness of Web	Weight / Mtr	Sectional Area	Moduli of Section
	h	B	t	w	a	Zxx	Zyy
	(mm)	(mm)	(mm)	(Kg)	(cm2)	(cm2)
ISMB 100	100	60	4.5	11.5	14.6	51.5	10.9
ISMB 125	125	70	5	13.2	16.6	71.2	11.7
ISMB 150	150	75	5	15	19	95.7	13.1
ISMB 175	175	85	5.8	19.5	24.6	145.4	18.9
ISMB 200	200	100	5.7	25.9	32.3	223.5	30
ISMB 250	250	125	6.9	37.3	47.6	410.5	53.5
ISMB 300	300	140	7.7	46	58.6	599	69.5
ISMB 350	350	140	8.1	52.9	66.7	778.9	76.8
ISMB 400	400	140	8.9	61.5	78.5	1022.9	88.9
ISMB 450	450	150	9.4	72.4	92.3	1350.7	111.2
ISMB 500	500	180	10.2	86.9	110.7	1808.7	152.2
ISMB 600	600	210	12	123	156.2	3060.4	252.5
