Cold rolled products

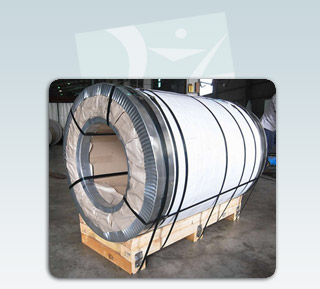

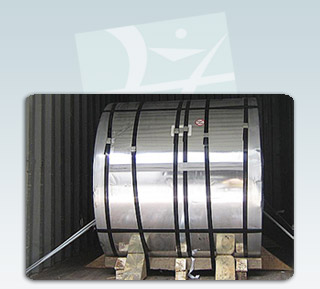

Cold rolled coils and sheets are produced after being processed in the 20 Hi Mill, continuous anneal & pickle line, skin pass mill slitting line and cut to length lines. Absolute flat sheets are produced after being put through the Voss leveller. Sheets & cold rolled coils are available in different finishes 2D, 2B, No3, No4 and BA


Blade steel

The company is the exclusive producer of stainless teel strips for making razor blades and surgical blades in India. The plant has a capacity to produce 10,000 metric tonnes per annum.

JSL Stainless Ltd. can readily supply Stainless Razor Blade Steel as per the broad material specifications / details given below :

(a) Size :
Thickness = 0.10 mm (+/- 0.007 mm)
Width = 22.40 mm (+/- 0.03 mm) and upto 340 mm (Max.)

(b) Chemical Composition :

C	=	0.6 to 0.7 %
Mn	=	0.5 to 0.8 %
P	=	0.028% Max.
S	=	0.02 % Max.
Si	=	0.2 to 0.5 %
Cr	=	12.5 to 13.5 %
Ni	=	0.5 % Max.

(c) Rolled Hardness = 280 to 330 HV
(d) Tensile Strength = 95 to 120 Kg/mm sq.
(e) Coil I. D. = 280 mm


Customised products

JSL Stainless Ltd. has developed the capability to supply customized products for critical applications. This has helped customers in their indigenisaation efforts.

Nuclear applications
Special stainless steel was developed for critical components in nuclear applications (304 L, 321 etc.) having very low inclusion content, high corrosion resistance (<10 MPY), ultrasonically sound (w.r.t. angular & straight beam probe testing), high temper tensile strength and impact strength.

Tailor made products
Niobium stabilized special grade austenitic stainless steel was developed for critical components to be used in steam and gas turbines and other engine components. This steel was required to have specified chemical compositions with mechanical and impact properties.

Duplex Stainless Steel
JSL Stainless Ltd. 2205, a ferritic-austentic stainless steel having a high chloride pitting resistance is the new entrant in the product mix. Cold Rolled annealed strips find extensive application as tubular material in sea water, chemical and paper & pulp plants.

Products	Continuous Cast Slabs	Continuous Cast Blooms	HR Stainless Steel Plates	HR Stainless Steel Coils	CR Stainless Steel Coils	Chequered Plates
Grade	AISI 304, 304L, 316, 316L, 321, JS201, 203, 400 Series	AISI 300 Series and 200, 400Series	AISI 304, 304L, 310, 316, 316L, 321, 409, 2205 Series	AISI 304, 304L, 310, 316, 316L, 321, 410, 420, 430, JS 201, 203, 409 Series	AISI 304, 304L, 316, 316L, 410, 420, 430, JS 201, 203, 409/409L	Composition Conforming to IS-2062 (Carbon Steels)
Thickness	160 mm	160x160 mm/200x200mm	5.0 to 63.0mm	3.0 to 6.0mm	0.05 to 0.8mm (narrow points-600mm) max	5, 6, 8 & 10 mm
Width	1550 mm (max)	160 mm/200mm	1000/1219/1250/1550 mm	790, 870, 1000, 1219, 1250, 1550 mm	790, 870, 1000, 1219, 1250, 1550 mm	1250, 1300 & 1550 mm
Length	6 to 8 Meters	4 to 6 Meters	1000 to 6300 mm	--	--	1000 to 6300 mm
High Carbon Ferro Chrome	Chromium 60-65%, Phosphorus 0.03% max, Silicon 4.0% max, Carbon 6-8%, Sulphur 0.05% max Size : 10-120mm, 90%min,
