   Alternate Flange Facings

Steel Hub Flange Steel Ring Flange

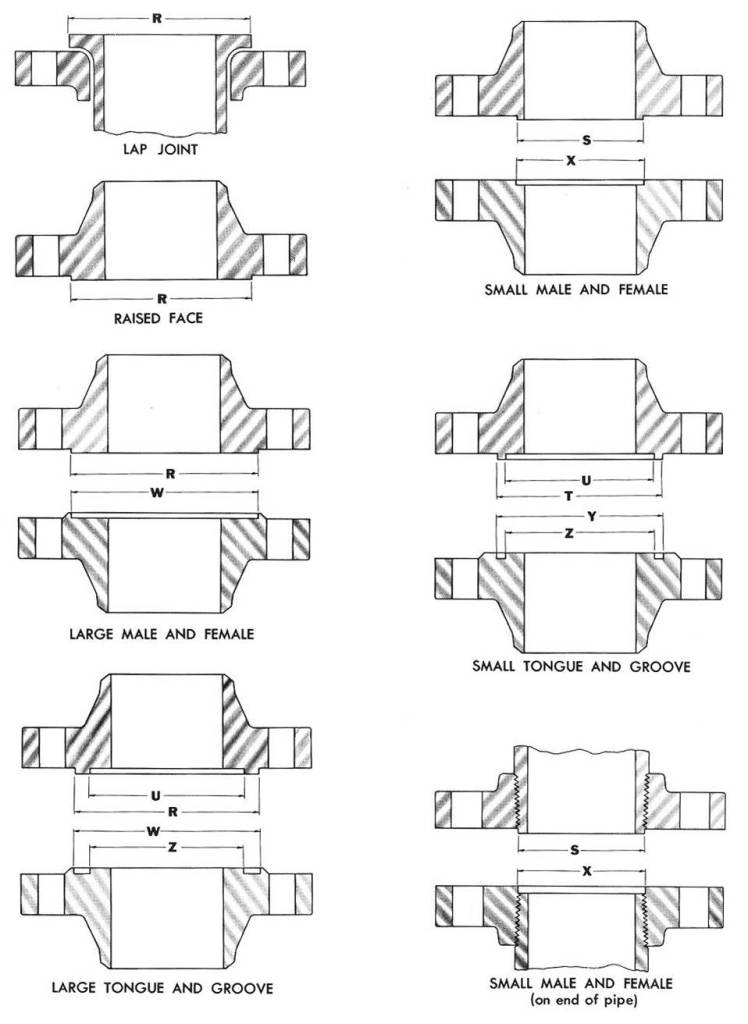

Alternate Flange Facings for 150, 300, 400, 600, 900, 1500 and 2500 lb. Flanges

Nominal Size        (in.) RF, LJ, Large Male and Large Tongue Small Male      (3) Small Tongue ID of Large and Small Tongue Large Female and Large Groove Small Female (3) Small Groove ID of Large and Small Groove Raised Face 150 and 300 Pound Standards (2) RF, Large and Small Male and Tongue 400, 600, 900, 1500, & 2500 lb. Standards (2) Depth of Groove or Female
  T U W X Y Z
 1/2 1.38 0.72 1.38 1 1.44 0.78 1.44 0.94 0.06 0.25 0.19
 3/4 1.69 0.94 1.69 1.31 1.75 1 1.75 1.25 0.06 0.25 0.19
1 2 1.19 1.88 1.5 2.06 1.25 1.94 1.44 0.06 0.25 0.19
1 1/4 2.5 1.5 2.25 1.88 2.56 1.56 2.31 1.81 0.06 0.25 0.19
1 1/2 2.88 1.75 2.5 2.12 2.94 1.81 2.56 2.06 0.06 0.25 0.19
2 3.62 2.25 3.25 2.88 3.69 2.31 3.31 2.81 0.06 0.25 0.19
2 1/2 4.12 2.69 3.75 3.38 4.19 2.75 3.81 3.31 0.06 0.25 0.19
3 5 3.31 4.62 4.25 5.06 3.38 4.69 4.19 0.06 0.25 0.19
3 1/2 5.5 3.81 5.12 4.75 5.56 3.88 5.19 4.69 0.06 0.25 0.19
4 6.19 4.31 5.69 5.19 6.25 4.38 5.75 5.12 0.06 0.25 0.19
5 7.31 5.38 6.81 6.31 7.38 5.44 6.88 6.25 0.06 0.25 0.19
6 8.5 6.38 8 7.5 8.56 6.44 8.06 7.44 0.06 0.25 0.19
8 10.62 8.38 10 9.38 10.69 8.44 10.06 9.31 0.06 0.25 0.19
10 12.75 10.5 12 11.25 12.81 10.56 12.06 11.19 0.06 0.25 0.19
12 15 12.5 14.25 13.5 15.06 12.56 14.31 13.44 0.06 0.25 0.19
14 16.25 13.75 15.5 14.75 16.31 13.81 15.56 14.69 0.06 0.25 0.19
16 18.5 15.75 17.62 16.75 18.56 15.81 17.69 16.69 0.06 0.25 0.19
18 21 17.75 20.12 19.25 21.06 17.81 20.19 19.19 0.06 0.25 0.19
20 23 19.75 22 21 23.06 19.81 22.06 20.94 0.06 0.25 0.19
24 27.25 23.75 26.25 25.25 27.31 23.81 26.31 25.19 0.06 0.25 0.19


(1.) Regular facing for 150 and 300 lb. Steel flanged fittings and flange standards is a 1/16 inch raised face included in the minimum flange thickness.  A 1/16 inch raised face is also permitted on the 400,


(2.)Regular facing for 400, 600, 900, 1500, and 2500 lb. Flange standards is a ¼ inch raised face not included in minimum flange thickness dimensions.


(3.)Care should be taken in the use of joints of these dimensions, (they apply particularly on lines where the joint is made on the end of pipe) to insure that pipe used is thick enough to permit sufficient bearing surface to prevent crushing the gasket.  Threaded companion flanges are furnished with plain face and are threaded with American Standard Locknut Thread.
